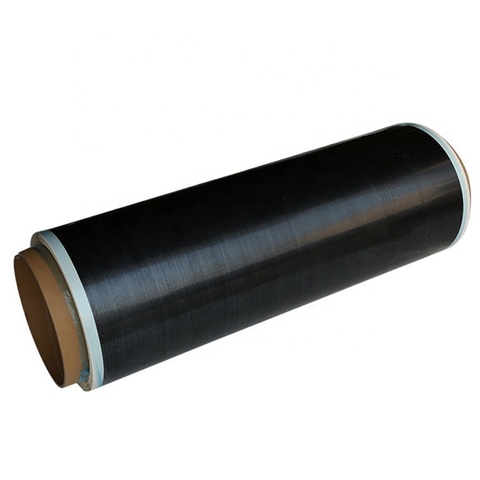

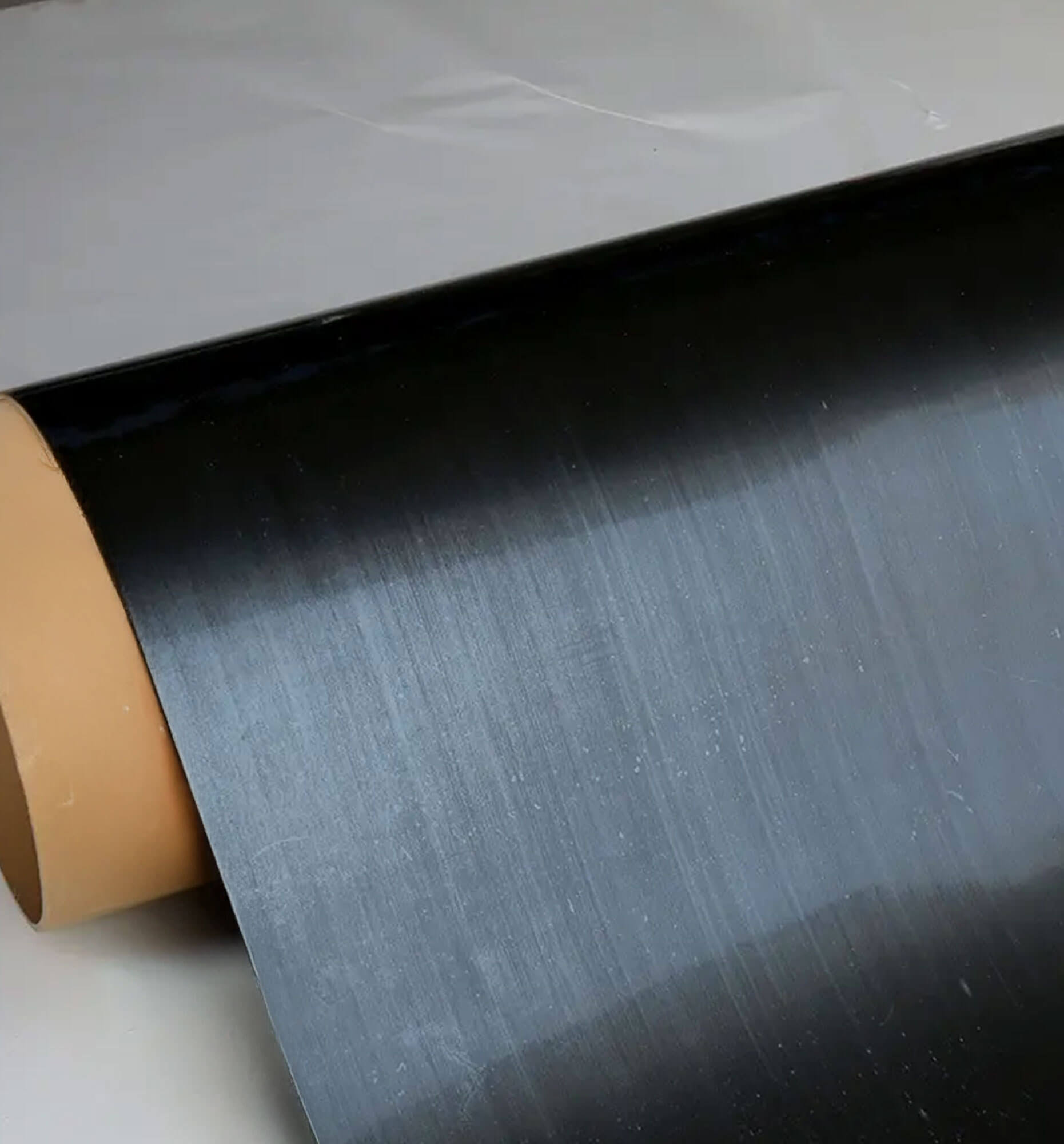

Unidirectional Carbon Fiber Prepreg
Unidirectional Carbon Fiber Prepreg is a high-performance composite material with fibers aligned in a single direction and pre-impregnated with resin, offering excellent strength, stiffness, and lightweight properties.
Specifications
Weave
：
Unidirectional (UD)
Function
：
Structural reinforcement, load-bearing, weight reduction, high-performance composites
Material
：
Carbon Fiber with epoxy resin system
Color
：
Black (Custom colors available)
Fiber Grade
：
T Series / M Series / H Series / IM Series
Filament Number
：
1K / 3K / 6K / 12K / 24K (customizable)
Resin System
：
Resin System: Epoxy / Phenolic / BMI / Cyanate Ester / Thermoplastic (upon request)
Inqury Now
QR code
Detail
Model | Areal Density (g/m²) | Resin Content (%) ±2% | Width (mm) | Length (m) | Thickness mm (±0.002) |
| 065 | 65 | 25-38 | 100 | 150 | 0.065 |
| 075 | 75 | 25-38 | 100 | 150 | 0.075 |
| 100 | 100 | 25-38 | 100 | 150 | 0.1 |
| 125 | 125 | 25-38 | 100 | 100 | 0.125 |
| 150 | 150 | 25-38 | 100 | 100 | 0.15 |
| 175 | 175 | 25-38 | 100 | 100 | 0.175 |
| 200 | 200 | 25-38 | 100 | 100 | 0.2 |
