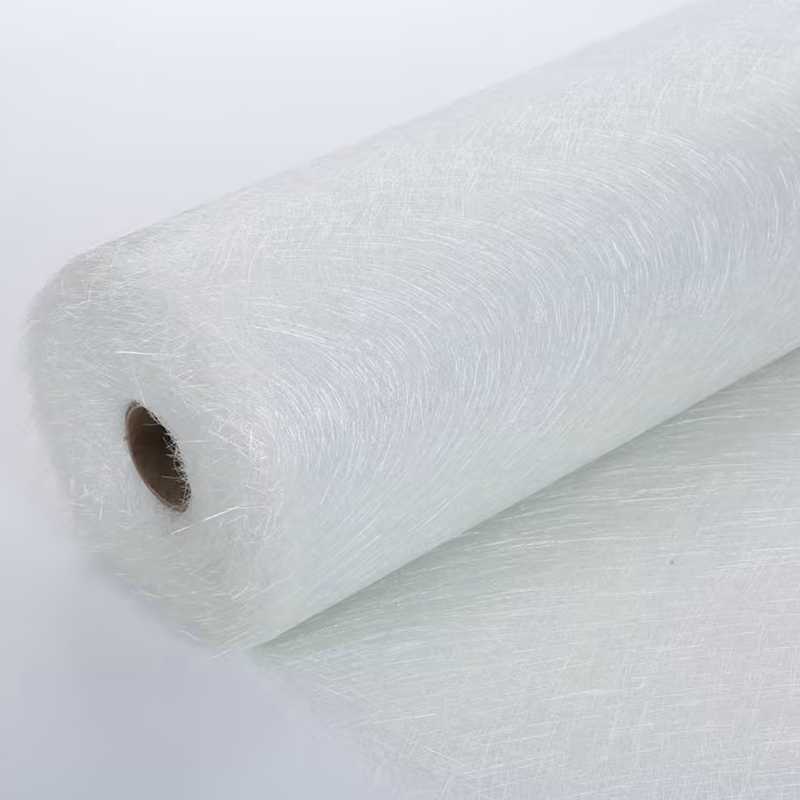

Continuous Filament Mat
| Area Weight (g/m²) | Moisture Content (%) | Loss on Ignition (LOI, %) | Tensile Strength (N) | Roll Width (mm) |
| Test Method | ISO 3344 | ISO 1887 | ISO 3342 | ISO 5025 |
| 300 | ≤ 0.2 | 2.1 - 6.3 | >200 | 1040, 1200 |
| 450 | ≤ 0.2 | 2.1 - 6.3 | >300 | 1040, 1200 |
| 600 | ≤ 0.2 | 2.1 - 6.3 | >350 | 1040, 1200 |
Product Advantages
Superior Tensile & Structural Strength: Formulated with continuous, unbroken fiberglass strands, providing exceptional tensile strength and tear resistance. This guarantees high tension endurance during automated pultrusion processes without continuous snapping.
Isotropic Mechanical Reinforcement: Delivers perfectly uniform, 360-degree multi-directional mechanical properties, ensuring the finished composite has consistent strength across all dimensions.
Outstanding Resin Wash Resistance: The highly continuous, interlocking web structure offers maximum resistance against high-pressure resin flow, preventing fiber movement, displacement, or bundling in closed-mold setups.
Excellent Wet-Out & Permeability: Designed for optimum compatibility with Unsaturated Polyester, Vinyl Ester, and Epoxy resins. It offers fast resin wet-out and rapid air release, leading to void-free laminates.
Enhanced Profile Surface Quality: Provides a smooth structural surface finish for extruded profiles, effectively reducing fiber print-through on the composite exterior.
Typical Applications
Continuous Filament Mat (CFM) is highly recommended for high-efficiency, automated, and closed-mold composite manufacturing processes:
Pultrusion Profiles: Ideal for structural shapes, fiberglass rebars (FRP bars), industrial cable trays, ladders, tool handles, and window lineals.
Closed Mold Processing (RTM & Vacuum Infusion): Extensively utilized in Resin Transfer Molding (RTM) and vacuum infusion lines for automotive structural parts, train components, and specialized enclosures.
Electrical & Insulation Infrastructure: Widely applied in manufacturing high-voltage electrical apparatus, transformer spacer sticks, insulation plates, and terminal switch gears due to its isotropic thickness.
Marine & Transportation Parts: Used to reinforce large panels, truck bed liners, boat deck structures, and wind turbine nacelle covers that demand high impact resistance.
