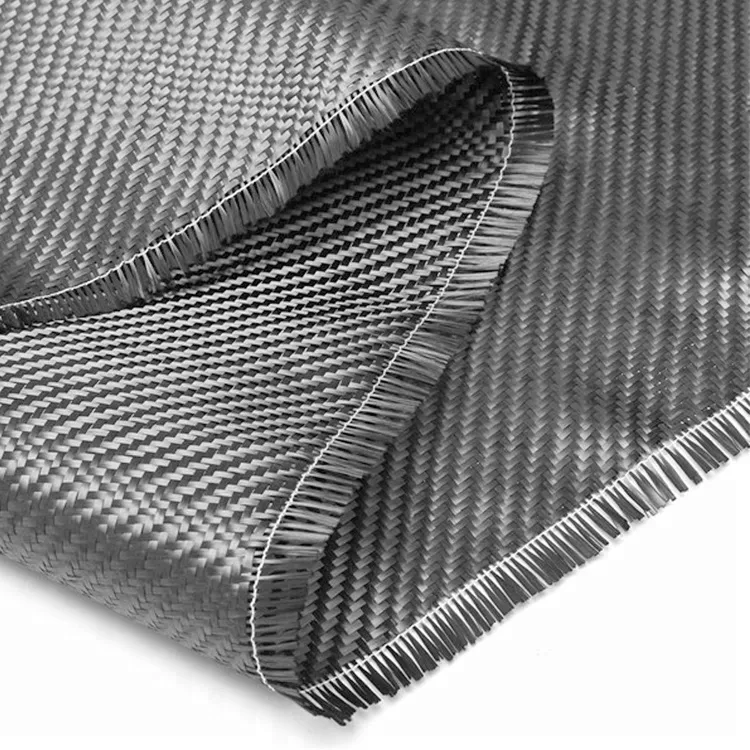

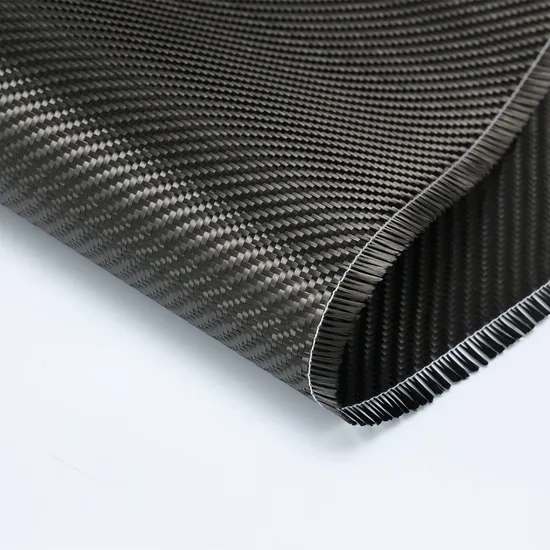

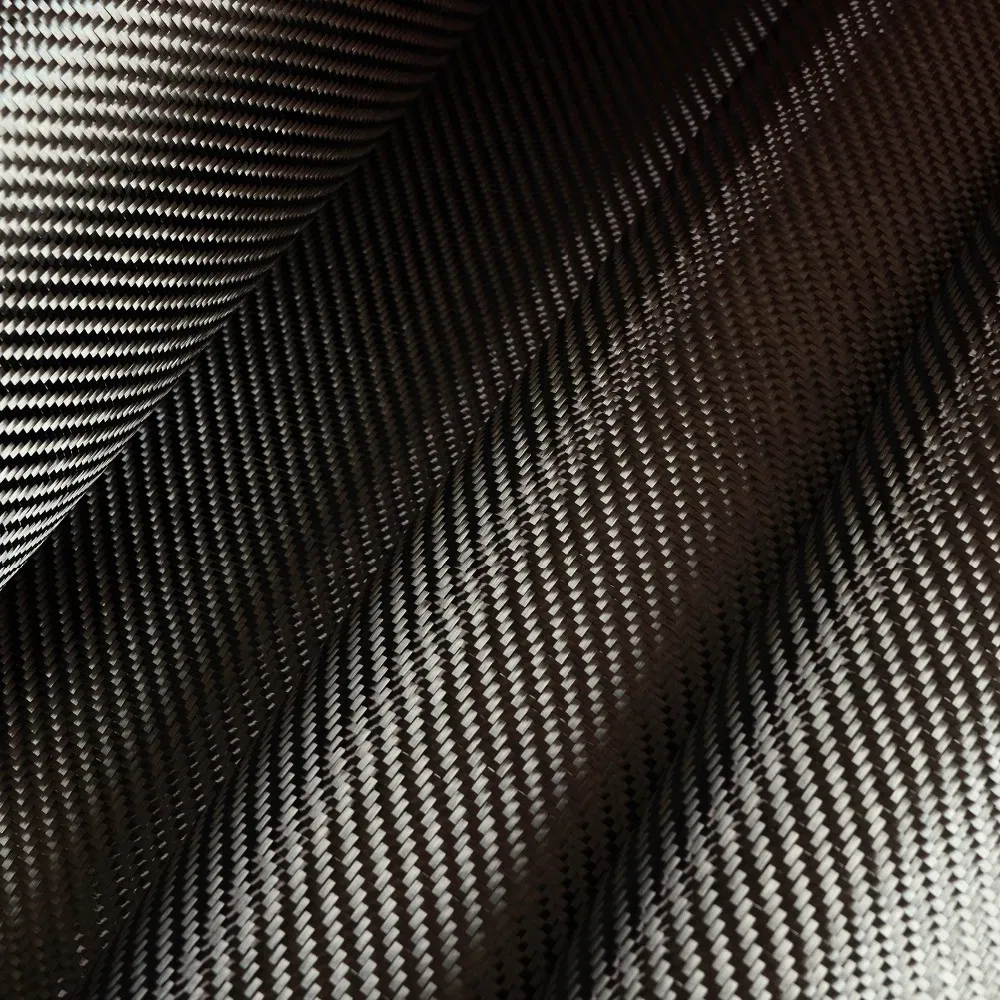

Dry Carbon Fiber Fabric

Parameter

• Weave: Plain / Twill / Satin / Unidirectional (UD)

• Function: Structural reinforcement, high-strength-to-weight components, aesthetic surfacing

• Material: 100% High-quality Carbon Fiber (T300 / T700 / T800 series)

• Filament Number: 1K / 3K / 6K / 12K / 24K (customizable)

• Areal Weight: 120 gsm – 600 gsm (standard and custom weights)

• Thickness: 0.12 mm – 0.6 mm (depending on weave and gsm)

Size Range

• Standard Width: 100 mm / 500 mm / 1000 mm / 1500 mm

• Standard Roll Length: 50 m / 100 m

• Customization: Precision slitting to specific widths and custom roll lengths available upon request

Material Characteristics & Performance

• High Tensile Strength: Provides superior load-bearing capacity.

• Excellent Drapability: Easily conforms to complex curves and intricate mold geometries.

• Low Resin Consumption: Optimized weave density ensures efficient resin wet-out.

• Chemical & Thermal Stability: High resistance to corrosion and extreme temperatures.

• Visual Appeal: Consistent weave patterns for premium surface finishes.

Applications

• Automotive: Body panels, spoilers, and interior decorative parts.

• Marine: Boat hulls, masts, and lightweight structural reinforcements.

• Sporting Goods: High-end bicycles, hockey sticks, and specialized gear.

• Civil Engineering: Structural strengthening and seismic retrofitting for buildings and bridges.

Custom Services

• Precision Slitting: Custom width rolls starting from 10mm.

• Hybrid Weaves: Capability to weave with aramid (Kevlar) or glass fiber for specific properties.

• Cut-to-Length: Pre-cut fabric pieces based on client-provided CAD drawings.

• Tailored Technical Solutions: Material selection guidance based on your specific project requirements.
