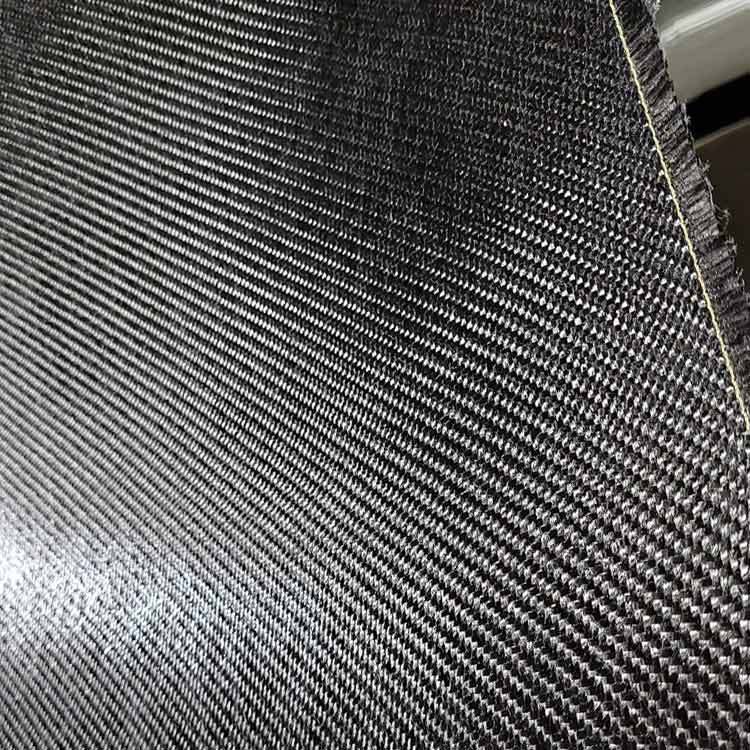

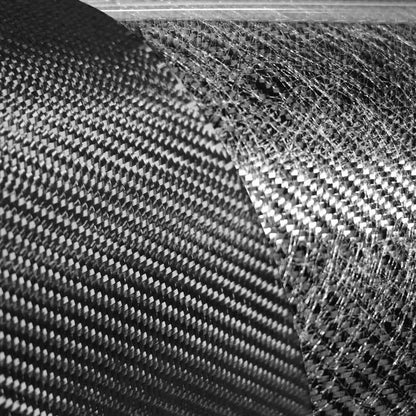

Carbon Fiber Stabilized Fabric

Parameter

• Weave: Plain / Twill / Multi-axial / Unidirectional

• Function: Automated CNC cutting, stable pre-shaping, maintaining fiber orientation

• Material: Carbon Fiber with Thermoplastic Binder (Epoxy compatible)

• Binder Content: 3% – 6% by weight (customizable)

• Softening Point: 65°C – 85°C (Standard range)

• Filament Number: 3K / 6K / 12K / 24K

Size Range

• Standard Width: 1000 mm / 1250 mm / 1500 mm

• Standard Roll Length: 50 m / 100 m

• Customization: Tailored binder concentrations and specialized widths available upon request

Material Characteristics & Performance

• Anti-Fraying Integrity: The binder holds individual fibers in place, enabling sharp, clean edges after manual or CNC cutting.

• Enhanced Pre-Shaping: Can be heat-formed to match the contours of complex 3D molds, reducing wrinkles and fiber bridging.

• Zero Weave Distortion: Ensures structural integrity by preventing the weave from shifting or "sliding" during handling.

• Excellent Resin Compatibility: Designed to integrate seamlessly with epoxy, vinyl ester, and polyester resin systems without affecting mechanical properties.

• Process Efficiency: Significantly reduces labor time in the pre-forming stage of RTM and vacuum infusion.

Applications

• Automotive RTM: High-volume production of structural parts, hoods, and decorative trims.

• Aerospace: Complex-shaped air ducts, fairings, and internal brackets.

• Wind Energy: Critical reinforcement zones where precise fiber alignment is mandatory.

• Industrial Robotics: Lightweight robotic arms and housings with intricate geometries.

Custom Services

• CNC Pre-cut Kits: We can provide pre-shaped fabric plies based on your CAD drawings.

• Specific Binder Patterns: Customization of binder application (dots, webs, or full coating) to suit specific infusion speeds.

• Hybrid Solutions: Application of stabilizing binders onto hybrid carbon/aramid or carbon/glass fabrics.

Notes:To ensure optimal performance, please specify your processing temperature and resin system when inquiring. For technical support or bulk quotes, please contact our engineering team.
