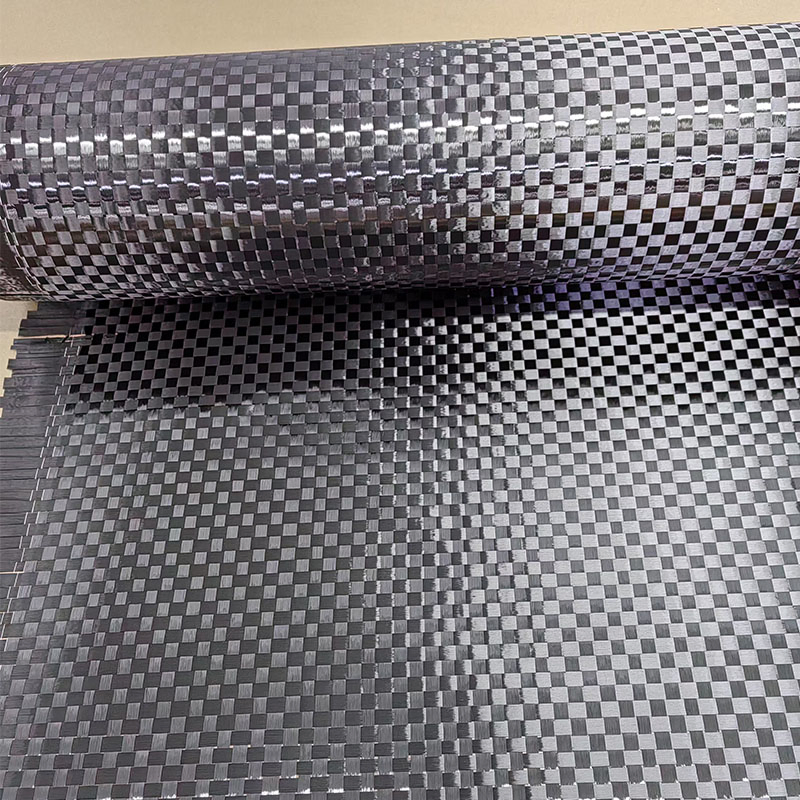

Spread Tow Carbon Fiber Fabric

Technical Specifications:

• Standard Areal Weight: 40 g/㎡, 80 g/㎡, 100 g/㎡, 160 g/㎡, 200 g/㎡

• Single Layer Thickness: 0.04 mm – 0.2 mm (Ultra-thin series)

• Standard Width: 1000 mm, 1200 mm, 1500 mm

• Roll Length: 50 m, 100 m, or custom lengths up to 500 m

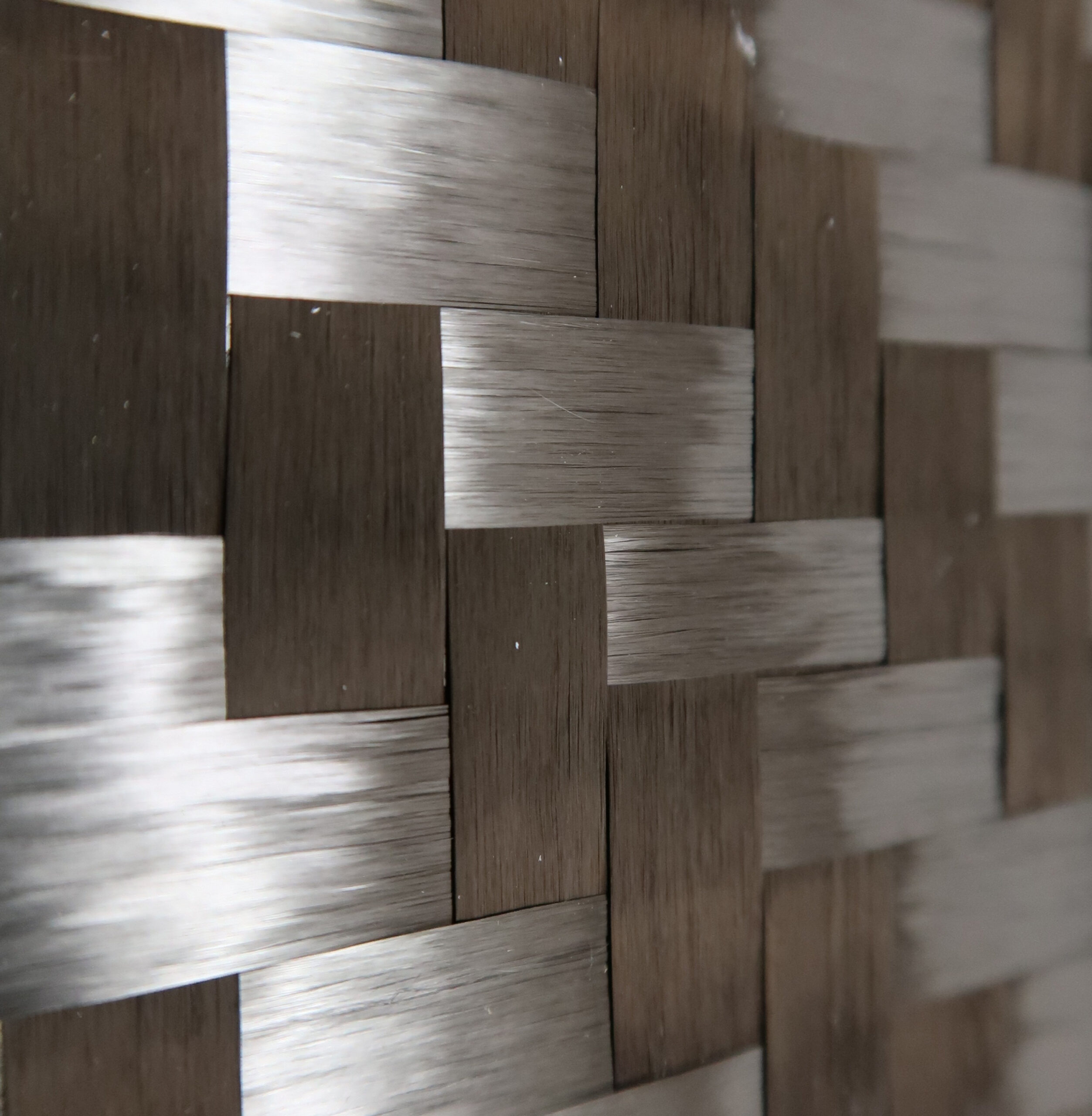

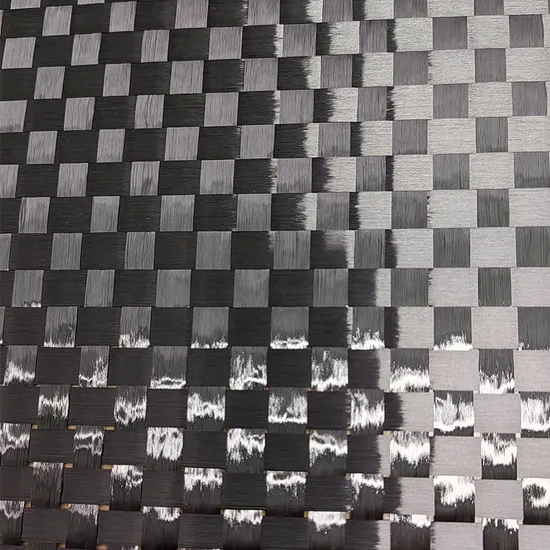

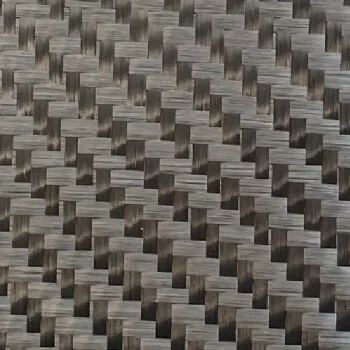

• Weave Patterns: Plain weave, Twill weave (Large-grid aesthetic)

Material Characteristics & Performance:

• Zero-Crimp Architecture: Maximizes fiber linearity for higher tensile and compressive strength.

• Ultra-Lightweight: Achieves superior mechanical properties with minimal material thickness.

• High Fiber Volume Fraction: Reduced resin consumption for an optimized strength-to-weight ratio.

• Superior Surface Flatness: Minimizes "print-through" effect, ideal for Class-A visual finishes.

• Excellent Dimensional Stability: Low thermal expansion for high-precision applications.

Applications:

• Aerospace & UAVs: Ultra-light skins, wing ribs, and satellite structural components.

• Automotive: Racing monocoques, aerodynamic splitters, and premium interior trims.

• Sports Equipment: High-end bicycle frames, hockey sticks, tennis rackets, and skis.

• High-End Consumer Electronics: Ultra-thin laptop casings and luxury watch components.

Custom Services:

• Tailored Layup Solutions: Custom fiber orientations (0°/90° or Multiaxial) for specific structural needs.

• Slitting & Cutting: Precision width slitting or CNC pre-preg cutting to client specifications.

• Material Selection: Available in T700, T800, or High-Modulus (M40J/M46J) fiber grades.

Notes:For detailed technical data sheets (TDS) or specific custom requirements, please contact our engineering team.
